Fenghua Xinling Pneumatic Engineering Co.,Ltd.
|
SMC Lubricators
| Payment Terms: | T/T,L/C,D/A,D/P,WU |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
It have G3/8 port size, and rated flow is also 1700L/min. Oil capacity is 50.
Certification:ISO9001
100% tested before shippment
Our brand name: FL

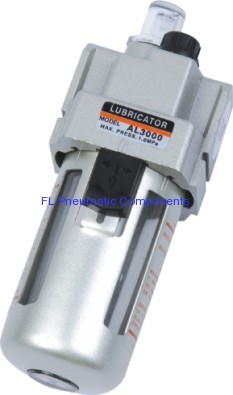

Product Name: AL3000-03 Pneumatic Lubricators
Model No.: FLAL3000-03
Model No.: FLAL3000-03
----------FLAL3000-03 SMC Lubricator
Symbol of Pneumatic Air Lubricators:
Specification of SMC Type Lubricators:
Ordering Code of AL3000-03 Air Lubricators:
Dimension of AL3000 Lubricators and AL4000 Lubricators:
| Model | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |
| Fluid | Air | |||||||||
| Proof Pressure | 1.5MPa(217psi) | |||||||||
| Max. Operating Pressure | 1.0MPa(145psi) | |||||||||
| Ambient and Fluid Temperature | 5--60℃ | |||||||||
| Recommended Lubricant | Class 1 Turbine Oil(ISO VG32) | |||||||||
| Bowl Guard | Not Available | Available | ||||||||
| Regulator Construction | Relieving Type | |||||||||
| Min. Dripping Flow Rate | 4 | 15 | 30 | 40 | 40 | 50 | 50 | 190 | ||
| Rated Flow | 95 | 800 | 1700 | 5000 | 6300 | 7000 | ||||
| Port size | M5 | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 | |||
| Oil capacity | 7 | 25 | 50 | 130 | ||||||
| Weight | 70g | 220g | 300g | 560g | 580g | 1080g | ||||
Ordering Code of AL3000-03 Air Lubricators:
Dimension of AL3000 Lubricators and AL4000 Lubricators:
| Model | Bore | A | B | C | D |
| AL1000 | M5 | 81.5 | 25.5 | 25 | - |
| AL2000 | G1/8--G1/4 | 122 | 38 | 40 | 40 |
| AL3000 | G1/4--G3/8 | 142 | 38 | 53 | 53 |
| AL4000 | G3/8--G1/2 | 177 | 41 | 70 | 70 |
| AL4000-06 | G3/4 | 177 | 39 | 70 | 70 |
| AL5000 | G3/4--G1 | 254 | 45 | 90 | 90 |
Structure of AL Series Lubricators:
| NO. | Description | Material | ||
| AL1000 | AL2000-AL4000 | AL5000 | ||
| 1 | Body | Zinc Die-Cast | Aluminum Alloy Die-Cast | |
| 2 | Sight Dome Assembly | Polycarbonate,Nylon | ||
| 3 | Oil Feed Plug | POM | ||
| 4 | Deflector Gate | POM | ||
| 5 | Oil Adjusting Handle | POM | ||
| 6 | Bowl Guard | Polycarbonate(Cold Rollded Steel), PC K1300(Cold Rolled Steel) | ||
| 7 | O-Ring | NBR | ||
| 8 | Retainer | POM | ||
| 9 | O-Ring | NBR | ||
| 10 | Middle Part | Aluminum Alloy Die-Cast | ||
