Air lubricators have been an important part ofpneumatic systems for decades. Lubrication helps reduce friction betweensliding surfaces to not only improve efficiency and increase cyclingspeed of a component, but reduces wear, which ultimately means longercomponent life and less maintenance. Moreover, in a pneumatic system,lubrication can reduce both internal and external leakage around valvespools, cylinder rods and pistons, and air motor and rotary actuatorvanes, rotors, and housings, as well as other components. This goes forconventional pneumatic components as well as those thatcan operate with non-lubricated air. Ultimately, the total savings fromusing lubricated air can exceed the cost of installing and maintainingthe lubricators.

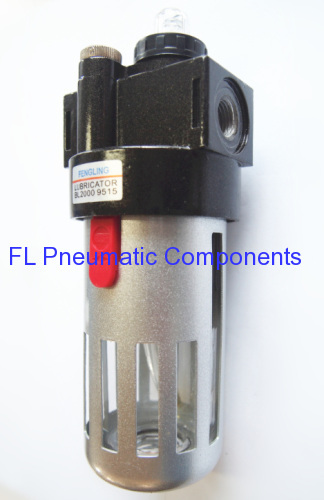

Product name: BL2000 Air Lubricators

Model Number: FLBL2000

----- BL2000 Oil Lubricators

Symbol of FL Pneumatic Components - Oil Lubricators:

Specification of BL Series Lubricators:

Model	AL1500	AL2000	BL2000	BL3000	BL4000
Fluid Medium	Air
Port Size	G1/8	G1/4	G1/4	G3/8	G1/2
Working Pressure	0.05--0.85MPa(7--123psi)
Proof Pressure	1.5MPa(217psi)
Working Temperature	5--60℃
Recommended Lubricant	ISO VG 32 or equivalent
Oil Bowl Capacity	25 cc		90 cc
Weight	170g		250g

Ordering Code of BL2000 Lubricators:

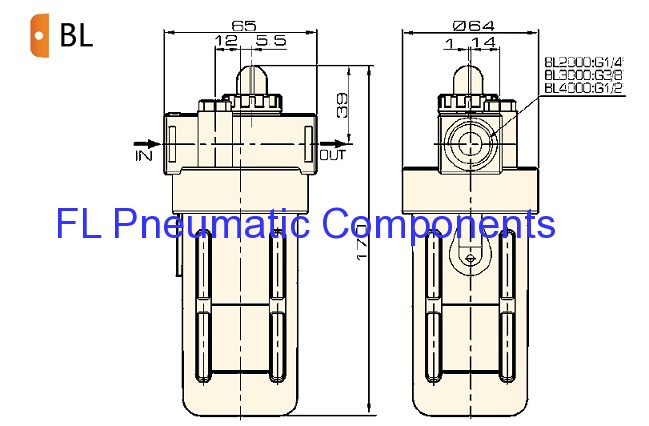

Dimension of BL2000 Airtac Lubricators:

Flow Chart of BL2000 Airtac Type Lubricators:

Structure of BL2000 Air Lubricators:

NO.	Description	Material
1	Drip Pipe	PC
2	Dripper O-Ring	NBR
3	Oil Adjusting Dial	POM
4	Adjusting Ring	NBR
5	Lubricator Seat	POM
6	Partition	PU
7	Libricator Kit Gasket	NBR
8	Adjustor	HDPE
9	Return Spring	Stainless Steel
10	Oil Bowl	PC
11	Sunk Tube	PU
12	Lubricator Kit	POM
13	Ball	Stainless Steel
14	Lbricator Fixed Plate	SPCC
15	Oil Bowl O-Ring	NBR
16	Body	Aluminum Alloy
17	Oil Filling Nut O-Ring	NBR
18	Oil Filling Plug	Steel
19	Needle Spring	Stainless Steel
20	Injector Pin	Bronze
21	Check-Dome	PC
22	Bowl Guard Switch	POM
23	Bowl Guard	Iron
