Product Detail

Model No.: FLAC5000-10

Production Capacity: 1000000

Delivery Date: Negotiable

Fluid Medium: Air

Port Size: G1

Working Temperature: 5--60℃

Max. Operating Pressure: 1.0MPa(145psi)

Rated Flow: 5000

Means of Transport: Ocean,Land,Air

Packing: In Cartons

Brand Name: FL

Filtering Grade: 25μm

Pressure Gauge Port Size: G1/4

Pressure Range: 0.05Mpa--0.85Mpa(7.3--123Ps...

Proof Pressure: 1.5MPa(217psi)

Origin: China

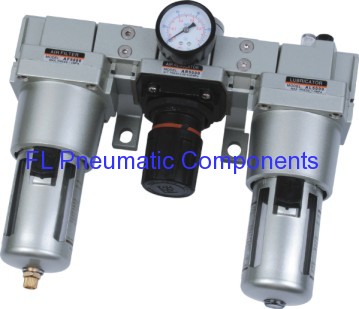

AC5000-10 SMC Air filter regulator lubricator F.R.L. Combination is the largest model of SMC F.R.L Combination, with G1 port size and rate flow 5000.

FR.L Combination and F.R.L Combination is a device that conditions air for use in pneumatic systems. An FRL is a combination filter-regulator-lubricator.
AC5000-10 Pneumatic F.R.L. Combination is combined with AF5000-10 SMC pneumatic Air filter and AR5000-10 air regulator and AL5000-10 SMC air lubricator.

Product name: AC5000-10 F.R.L Combination

Model Number: FLAC5000-10
AC5000-10 Air Filters and Regulators and Lubricators

----- AC5000-10 F.R.L Combination

Symbol of FL Pneumatic Components-SMC F.R.L. Combination:
AC5000-10 Air Filters and Regulators and Lubricators

Specification of China Air Treatment Units-AC Series F.R.L Combination:

Model

AC1000-M5

AC2000-01

AC2000-02

AC2500-02

AC2500-03

AC3000-02

AC3000-03

AC4000-03

AC4000-04

AC4000-06

AC5000-06

AC5000-10

Fluid Medium

Air

Filtering Grade

25μm

Pressure Gauge Port Size

G1/16

G1/8

G1/4

Port size

G1/8

G1/4

G3/8

G1/2

G3/4

Max Operating Pressure

1.0MPa(145psi)

Proof Pressure

1.5MPa(217psi)

Working Temperature

5--60℃

Recommended Lubricant

Class 1 Turbine Oil(ISO VG32)

Bowl Guard

Not Available

Available

Rated Flow(L/min)

500

1500

2000

4000

4500

5000

Components

AF1000-M5

AF2000-01

AF2000-02

AF2500-02

AF2500-03

AF3000-02

AF3000-03

AF4000-03

AF4000-04

AF4000-06

AF5000-06

AF5000-10

AR1000-M5

AR2000-01

AR2000-02

AR2500-02

AR2500-03

AR3000-02

AR3000-03

AR4000-03

AR4000-04

AR4000-06

AR5000-06

AR5000-10

AL1000-M5

AL2000-01

AL2000-02

AL3000-02

AL3000-03

AL3000-02

AL3000-03

AL4000-03

AL4000-04

AL4000-06

AL5000-06

AL5000-10

Weight

260g

740g

1040g

1180g

2140g

2470g

3820g

Ordering Code of China Air Preparation Units-AC5000-10 F.R.L. Combination:
AC5000-10 Air Filters and Regulators and Lubricators

Dimension of China Air Source Treatment Units-AC Series F.R.L. Combination:
AC5000-10 Air Filters and Regulators and Lubricators

Model No.	Bore	A	B	C	D	E	F	G	H
AC1000	M5	91	33	25.5	84.5	26	25	25	20
AC2000	G1/8--G1/4	140	50	38	125	56.8	30	40	24
AC2500	G1/4--G3/8	181	64	38	156.5	60.8	41	53	35
AC3000	G1/4--G3/8	181	64	38	156.5	60.8	41	53	35
AC4000	G3/8--G1/2	238	84	41	191.5	65.6	50	70	40
AC4000-06	G3/4	253	89	41	193	69.5	50	70	40
AC5000	G3/4--G1	300	105	48	271.5	75.5	69.8	90	50
