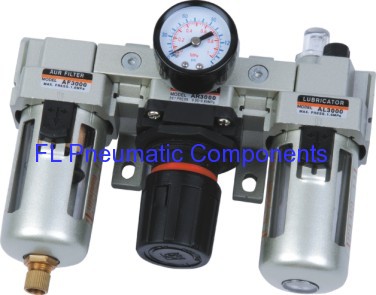

Enlarge AC3000 Airline F.R.L Combination

AC3000 Airline F.R.L Combination

Payment Terms: T/T,L/C,D/A,D/P,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: FLAC3000-02
Production Capacity: 1000000
Delivery Date: Negotiable
Fluid Medium: Air
Working Temperature: 5--60℃
Max. Operating Pressure: 1.0MPa(145psi)
Port Size: G1/4
Rated Flow: 2000
Means of Transport: Ocean,Land,Air
Packing: In Cartons
Brand Name: FL
Filtering Grade: 25μm
Pressure Range: 0.05Mpa--0.85Mpa(7.3--123Ps...
Proof Pressure: 1.5MPa(217psi)
Pressure Gauge Port Size: G1/8
Origin: China

It is combined with AF3000-02 SMC pneumatic Air filter,AR3000-02 smc pressure regulator and AL3000-02 SMC air lubricator.

FR.L Combination and F.R.L Combination is a device that conditions air for use in pneumatic systems. An FRL is a combination filter-regulator-lubricator.
AC3000-02 Pneumatic F.R.L Combination is combined with AF3000-02 SMC pneumatic Air filter and AR3000-02 air regulator and AL3000-02 SMC air lubricator.

Product name: AC3000-02 F.R.L Combination
Model Number: FLAC3000-02
AC3000-02 Air Filter Regulator Lubricators
----- AC3000-02 Three Point F.R.L Combination

Symbol of Air Treatment Units in China-FL F.R.L. Combination:
AC3000-02 Air Filter Regulator Lubricators

Specification of FL Pneumatic Components-AC Series F.R.L Combination:
ModelAC1000-M5AC2000-01AC2000-02AC2500-02AC2500-03AC3000-02AC3000-03AC4000-03AC4000-04AC4000-06AC5000-06AC5000-10
Fluid MediumAir
Filtering Grade25μm
Pressure Gauge Port SizeG1/16G1/8G1/4
Port sizeM5G1/8G1/4G3/8G1/4G3/8G1/2G3/4G1
Max Operating Pressure1.0MPa(145psi)
Proof Pressure1.5MPa(217psi)
Working Temperature5--60℃
Recommended LubricantClass 1 Turbine Oil(ISO VG32)
Bowl GuardNot AvailableAvailable
Rated Flow(L/min)9050015002000400045005000
ComponentsAF1000-M5AF2000-01AF2000-02AF2500-02AF2500-03AF3000-02AF3000-03AF4000-03AF4000-04AF4000-06AF5000-06AF5000-10
AR1000-M5AR2000-01AR2000-02AR2500-02AR2500-03AR3000-02AR3000-03AR4000-03AR4000-04AR4000-06AR5000-06AR5000-10
AL1000-M5AL2000-01AL2000-02AL3000-02AL3000-03AL3000-02AL3000-03AL4000-03AL4000-04AL4000-06AL5000-06AL5000-10
Weight260g740g1040g1180g2140g2470g3820g

Ordering Code of FL Air Treatment Units-AC3000-02 Three Point F.R.L. Combination:
AC3000-02 Air Filter Regulator Lubricators

Dimension of FL Air Source Treatment Units-AC Series F.R.L Combination:
AC3000-02 Air Filter Regulator Lubricators
Model No.BoreABCDEFGH
AC1000M5913325.584.526252520
AC2000G1/8--G1/4140503812556.8304024
AC2500G1/4--G3/81816438156.560.8415335
AC3000G1/4--G3/81816438156.560.8415335
AC4000G3/8--G1/22388441191.565.6507040
AC4000-06G3/4253894119369.5507040
AC5000G3/4--G130010548271.575.569.89050
