AW2000 SMC AW Series FR Combination

Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FLAW2000-01

Production Capacity: 1000000

Delivery Date: Negotiable

Fluid Medium: Air

Port Size: G1/8

Max. Operating Pressure: 1.0MPa(145psi)

Bowl Guard: Not Available

Capacity of Drain Bowl: 25

Means of Transport: Ocean,Land,Air

Packing: In Cartons

Brand Name: FL

Filtering Grade: 25μm

Pressure Range: 0.05Mpa--0.85Mpa(7.3--123Ps...

Proof Pressure: 1.5MPa(217psi)

Working Temperature: 5--60℃

Weight: 360g

Fenghua Xinling PC is the leading manufacturer and exporter of SMC AW Series FR Combination such as AW2000-01 air filter and regulator combination.

Product name: AW2000-01 Air Filters and Regulators

Model Number: FLAW2000-01

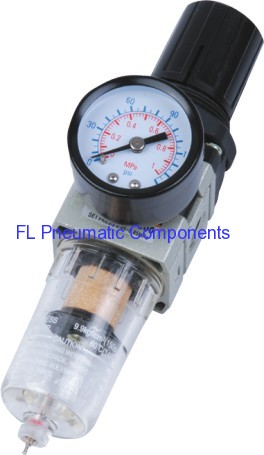

AW2000-01 Air Filters and Regulators Combination

----- AW2000-01 Air Filters and Regulators

Symbol of FLAW Series FR Combination:

Specification of AW Series Air Filters and Regulators:

Model	AW1000-M5	AW2000-01	AW2000-02	AW3000-02	AW3000-03	AW4000-03	AW4000-04	AW4000-06	AW5000-06	AW5000-10
Fluid	Air
Filtering Grade	25μm
Port size	M5	G1/8	G1/4		G3/8		G1/2	G3/4		G1
Pressure Gauge Port Size	G1/16	G1/8				G1/4
Pressure Range	0.05--0.7Mpa (7.3--102Psi)	0.05--0.85Mpa(7.3--123Psi)
Max Operating Pressure	1.0MPa(145psi)
Proof Pressure	1.5MPa(217psi)
Working Temperature	5--60℃
Bowl Guard	Not Available			Available
Rated Flow	100	550		2000		4000		4500	5500
Capacity of Drain Bowl	4	15		20		45			130
Weight	90g	360g		560g		1150g		1210g	1700g

Ordering Code of AW2000-01 FR Combination:
AW2000-01 Air Filters and Regulators Combination

Dimension of AW Series Air Filters and Regulators:

Model No.	Bore	A	B	C	D	E
AW1000	M5	109.5	50.5	25	28	28
AW2000	G1/8--G1/4	164.5	78	40	40	34
AW3000	G1/4--G3/8	211	92.5	53	53	40
AW4000	G3/8--G1/2	262	112	70	70	54
AW4000-06	G3/4	267	114	70	70	54
AW5000	G3/4--G1	338	116	90	90	54

Structure of AW Series Air Filters and Regulators:

NO.	Description	Material
		AW1000	AW2000	AW3000,AW4000
1	Body	Zinc Die-Cast	Aluminum Die-Cast
2	Bonnet	Reinforced Nylon		Aluminum Die-Cast
3	Valve Assembly	Brass,NBR
4	Filter Element	Brass
5	Baffle	POM
6	Diaphragm Assembly	NBR
7	Whirlwind Blade	POM
8	Bowl Guard	Not Available		Available
9	Spring	Stainless Steel
10	O-Ring	NBR
11	O-Ring	NBR
12	Hand Wheel	Nylon
13	O-Ring	NBR

Uses of Air filters and regulators combinations:
Air filters and regulators combinationsareused on air compressors for regulating the amount of paint that is emitted from industrial paint guns. They arealso used in dentalofficesand hospitals and on construction sites forjack hammers. Mechanics usethem for raising lifts and on impact gunsfor changing tiresand Air filters and regulators combinations are used in the industrial sector's manufacturing process.
