Model No.: 4H310-10

Production Capacity: 100000

Delivery Date: Negotiable

Operating Type: Direct Drive Type

Working Pressure: 0--0.8Mpa(0--114psi)

Working Temperature: 5--50℃

Material: Aluminium Alloy

Way and Position: 5/2 Way

Means of Transport: Ocean,Land,Air

Packing: In Cartons

Brand Name: FL

Fluid Medium: 40 Micron Filtered Air

Proof Pressure: 1.2MPa(174psi)

Port Size: Air Inlet=Air Outlet=G1/4, ...

Effective Cross Section Area: 16mm²(CV=0.89)

Origin: China

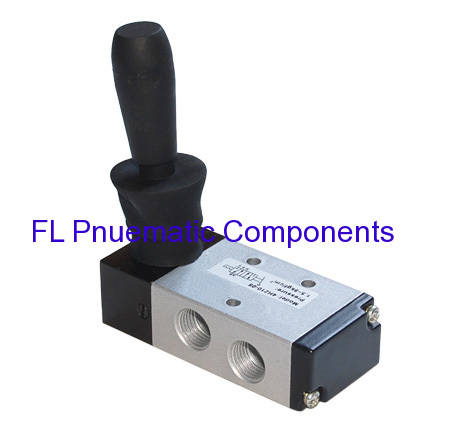

We, Fenghua Xinling Pneumatic Components Company is the leading manufacturer and exporter of airtac hand pull valves such as 4H310-10 Hand Pull Valves

Product name: 4H310-10 Hand Pull Valves

Model Number: 4H310-10

----- 4H310-10 Airtac Hand Pull Valves

Specification of Airtac Hand Valves Supplier-4H Series Hand Pull Valves:

Model	4H210-06	4H210-08	4H230-08	4H310-08	4H310-10	4H330-10	4H410-15	4H430-15
Operation Type	Direct Drive Type
Fluid Medium	40 Micron Filtered Air
Working Pressure	0--0.8Mpa(0--114psi)
Proof Pressure	1.2MPa(174psi)
Working Temperature	5--50℃
Way and Position	5/2 Way	5/2 Way	5/3 Way	5/2 Way	5/2 Way	5/3 Way	5/2 Way	5/3 Way
Port Size	Air Inlet=Air Outlet=Exhaust=G1/8	Air Inlet=Air Outlet=G1/4, Exhaust=G1/8		Air Inlet=Air Outlet=Exhaust=G1/4	Air Inlet=Air Outlet=G3/8, Exhaust=G1/4		Air Inlet=Air Outlet=Exhaust=G1/2
Effective Cross Section Area	14mm²(CV=0.78)	16mm²(CV=0.89)	12mm²(CV=0.67)	25mm²(CV=1.40)	30mm²(CV=1.68)	18mm²(CV=1.00)	50mm²(CV=2.79)	30mm²(CV=1.68)
Material	Aluminium Alloy

Symbol of China Airtac Hand Pull Valve:

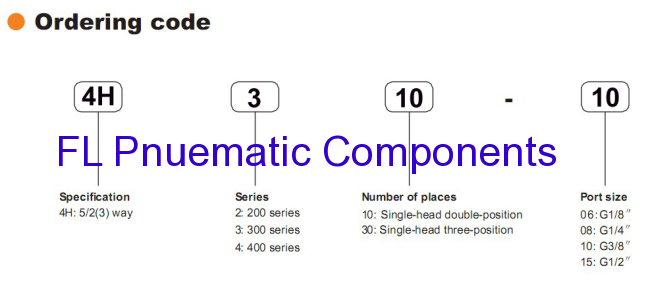

Ordering Code of China Supplier Airtac Hand Valves-4H310-10 Hand Pull Valves:

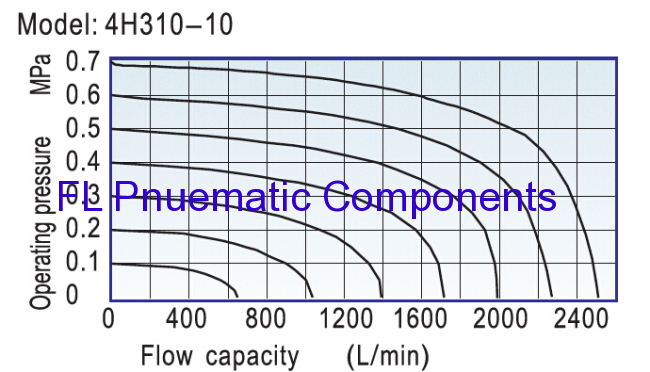

Flow Chart of China Manufacturer of Airtac Hand Valves-4H310-10 Hand Pull Valves:

Dimension of China Factory of Airtac Hand Valves-H310-10 Hand Pull Valves:

Symbol/Model	4H210-06(08)	4H230-06(08)-S(Automatic Re-bound)	4H310-08(10)	4H330-08(10)-S(Automatic Re-bound)	4H410-15	4H430-15-S(Automatic Re-bound)
Symbol/Model	4H230-06(08)-L	4H230-06(08)-S(Automatic Re-bound)	4H330-08(10)-L	4H330-08(10)-S(Automatic Re-bound)	4H430-15-L	4H430-15-S(Automatic Re-bound)
A	76	95	96	115	126	147
B	56.5	75.5	72	91	102	123
C	31.5	31.5	40	60	55.5	76.5
D	22	22	27	27	34	34
E	95	95	100	100	110	110
F	6.5	6.5	7.5	7.5	7.5	7.5
G	66.5	85.5	84	103	114	135
H	18	18	18	18	18	18
I	20	20	24	24	28	28
J	36	36	45	45	63	63
K	21	21	24	24	36	36
L	35	35	40	40	50	50
M	21	21	27	27	35	35
N	G1/8	G1/8	G3/8	G3/8	G1/2	G1/2
O	G1/8(G1/4)	G1/8(G1/4)	G1/4(G3/8)	G1/4(G3/8)	G1/2	G1/2
P	4.3	4.3	4.3	4.3	5.5	5.5
Q	1.5(-)	1.5(-)	2(-)	2(-)	-	-

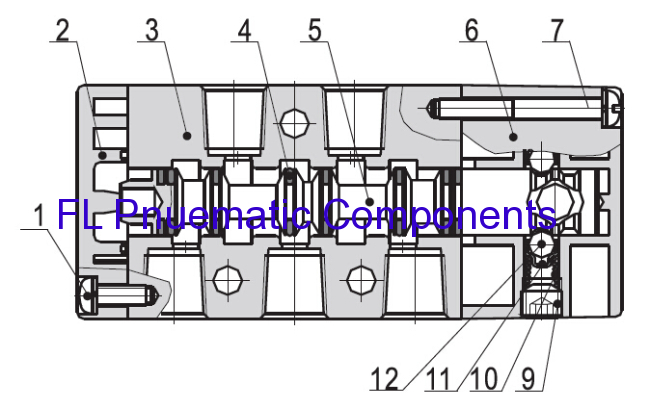

Structure of China Factory of Hand Pull Valves-4H310 Hand Pull Valves

No.	Item
1	Round Head Screw
2	Bottom Cover
3	Body
4	O-Ring
5	Spool
6	Top Cover
7	Round Head Cover
8	Axle
9	Stop Screw
10	Spring
11	Steel Ball Jacket
12	Steel Ball
13	E Clip
14	Side Cover
15	Spring
16	Spring Holder
