Model No.: DNC32X125

Production Capacity: 100000

Delivery Date: Negotiable

Acting Type: Double Acting

Pressure Range: 0.05Mpa--0.8Mpa(7.3--116Psi...

Working Temperature: 0--70℃

Cushion: Adjustable Cushion

Port Size: G1/8

Means of Transport: Ocean,Land,Air

Packing: In Cartons

Brand Name: FL

Medium: Air

Proof Pressure: 1.35MPa(195psi)

Working Speed Range: 50--800 mm/s

Adjustable Cushion Stroke: 20mm

Origin: China

We, Fenghua Xinling Pneumatic Company is China leading manufacturer and exporter of Festo type ISO15552 DNC Series pneumatic standard air cylinders.

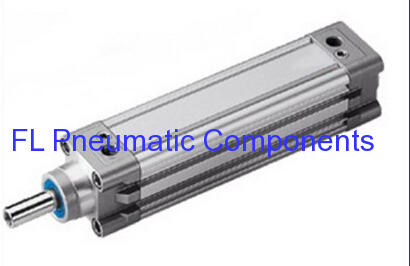

Product Name: Festo Type DNC Standard Cylinders
Model No.: DNC32X125

---------ISO6431 Festo DNC Standard Cylinders

Symbol of China ISO15552 Festo DNC Standard Cylinders:
DNC Pneumatic Air Cylinders

Specification of FESTO ISO15552 Standard Cylinders China Supplier-ISO6431 Festo DNC Standard Cylinders:

Bore	32	40	50	63	80	100	125
Operation Type	Double Acting
Working Medium	Air
Pressure Range	0.05Mpa--0.85Mpa(7.3--123Psi)
Proof Pressure	1.35MPa(217psi)
Working Temperature	0--70℃
Working Speed Range	50--800 mm/s
Cushion	Adjustable Cushion
Adjustable Cushion Stroke	20mm		22m		32mm		35mm
Port Size	G1/8	G1/4		G3/8		G1/2
Mounting Accessories	BASIC, FA, FB, LB, CA, CB

Stroke of FESTO ISO15552 DNC Standard Cyliders-China ISO 6431 DNC Standard Cylinders:

Bore	Standard Stroke	Buffer Stroke	Allowable Stroke
32	25 40 50 80 100 125 160 200 250 320 400 500	20	2000
40	25 40 50 80 100 125 160 200 250 320 400 500	20	2000
50	25 40 50 80 100 125 160 200 250 320 400 500	22	2000
63	25 40 50 80 100 125 160 200 250 320 400 500	22	2000
80	25 40 50 80 100 125 160 200 250 320 400 500	32	2000
100	25 40 50 80 100 125 160 200 250 320 400 500	32	2000
125	25 40 50 80 100 125 160 200 250 320 400 500	35	2000

Ordering Code of China ISO6431 Festo Type Pneumatic Cylinders-Festo DNC32X125 Air Cylinders:
Festo Type DNC Standard Cylinders

Dimension of China ISO15552 Festo DNC Standard Cylinders Manufacturer-Festo ISO6431 DNC Series Air Cylinders:

DNC Pneumatic Air Cylinders

Bore/Symbol	A	B	C	D	E	F	G	H	I	J	K	L
32	190	16	94	30	32	10	25	22	17	6	M10 x 1.25	M6
40	213	20	105	35	34	10	29.5	24	17	7	M12 x 1.25	M6
50	244	27	106	40	42	10	32	32	23	8	M16 x 1.5	M8
63	258	26	122	45	42	10	36	32	23	8	M16 x 1.5	M8
80	301	35	127	45	52	10	37	40	26	10	M20 x 1.5	M10
100	321	40	137	55	52	10	39	40	26	10	M20 x 1.5	M10
125	352	46	160	60	73	20.5	44.7	54	-	-	M27 x 2	M12

Bore/Symbol	M	N	O	P	Q	R	S	T	U	V	W	X
32	12	15	G1/8	5	3	6.5	45	32.5	12	10	28	4
40	12	17.5	G1/4	6	3	7	52	38	16	13	33	4
50	12	21	G1/4	6	3	9	65	46.5	20	17	38	4
63	12	23	G3/8	8	5	9	76	56.5	20	17	40	4
80	12	24	G3/8	10	5	12	94	72	25	22	43	5
100	12	26	G1/2	10	5	14	112	89	25	22	47	6
125	-	22.3	G1/2	13	8	16	134	110	32	27	58	6

Structure of China Supplier of Festo ISO15552 Pneumatic Air Cylinders- Festo ISO6431 DNC Pneumatic Standard Cylinders:
DNC Pneumatic Air Cylinders

No.	Name
1	Piston Rod Nut
2	Piston Rod
3	Front Cover Seal Ring
4	Bearing
5	Front Cover
6	Buffering O-Ring
7	O-Ring
8	Pistion rod O-Ring
9	Piston O-Ring
10	Magnet(Optional)
11	Wear Ring
12	Barrel
13	Piston
14	Cushion Seal
15	Cushion Needle
16	Back Over
17	Hex Socket Screw
18	Profile Bolt
