Model No.: SSA

Production Capacity: 100000

Delivery Date: Negotiable

Acting Type: Single Acting

Pressure Range(Double Acting Type): 0.05Mpa--0.85Mpa(7.3--123Ps...

Proof Pressure: 1.05MPa(150psi)

Working Speed Range: 100--500 mm/s

Origin: China

Means of Transport: Ocean,Land,Air

Packing: In Cartons

Brand Name: FL

Fluid Medium: Air

Pressure Range(Single Acting Type): 0.2Mpa--0.85Mpa(29--123Psi)

Working Temperature: 0--70℃

Port Size: G1/8

We, FL Pneumatic Components Company is the leading manufacturer and exporter in China of Single acting type compact air cylinders such as SSA and STA.

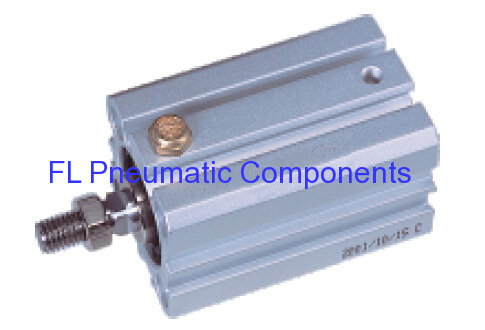

Product Name: SSA Single Acting Type Compact Cylinder

---------SSA Series Single Acting Type Compact Cylinder

Product Features of SSA Series Single Acting Type Compact Cylinder:
1. Single acting type push compact cylinder
2. Compact Structure can effectively save installation space.
3. Various sizes of cylinders and mounting accessories for your choice
4. high quality and competitive price

The medium used by the cylinder must be fitlered to 40μm or below

Symbol of Airtac SSA Single Acting Type Compact Cylinders:

Specification of China SSA Single Acting Type Compact Air Cylinders:

Bore		12	16	20	25	32	40	50	63	80	100
Operation Type		Double Acting
		Single Acting Push Type, Single Acting Pull Type						-
Working Medium		Air
Pressure Range	Double Acting Type	0.05Mpa--0.85Mpa(7.3--123Psi)
	Single Acting Type	0.2Mpa--0.85Mpa(29--123Psi)
Proof Pressure		1.05MPa(150psi)
Working Temperature		0--70℃
Working Speed Range	Double Acting Type	30--500 mm/s					30--350 mm/s		30--250 mm/s
	Single Acting Type	100--500 mm/s					-
Port Size		M5X0.8				G1/8		G1/4		G3/8

The dimension of Airtac SSA Single Acting Type Thin Type Air Cylinders:

Type	Standard					With Magnet					D	E	F	G	K1	L	M	N1	N3
Bore/Symbol	A		B1	C		A		B1	C			E	F	G	K1	L	M	N1	N3
Stroke	≤10	>10	B1	≤10	>10	≤10	>10	B1	≤10	>10
12	32	42	5	27	37	42	52	5	37	47	-	6	4	1	M3X0.5	8	2.8	6.3	6
16	34	44	5.5	28.5	38.5	44	54	5.5	38.5	48.5	-	6	4	1.5	M3X0.5	10	2.8	7.3	6.5
20	35	45	5.5	29.5	39.5	45	55	5.5	39.5	49.5	36	8	4	1.5	M4X0.7	15	2.8	7.5	-
25	37	47	6	31	41	47	57	6	41	51	42	10	4	2	M5X0.8	17	2.8	8	-
32	41.5	51.5	7	34.5	44.5	51.5	61.5	7	44.5	54.5	50	12	4	3	M6X1	22	2.8	9	-
40	43	53	7	36	46	53	63	7	46	56	58.5	12	4	3	M8X1.25	28	2.8	10	-

Bore/Symbol	O	P1	P3	P4	R	S	T1	T2	U	V	W	X	Y
12	M5X0.8	Double Side: Φ6.5 Cog:M5x0.8 Through Hole:Φ4.2	12	4.5	-	25	16.2	23	1.6	6	5	-	-
16	M5X0.8	Double Side: Φ6.5 Cog:M5x0.8 Through Hole:Φ4.2	12	4.5	-	29	19.8	28	1.6	6	5	-	-
20	M5X0.8	Double Side: Φ6.5 Cog:M5x0.8 Through Hole:Φ4.2	14	4.5	2	34	24	-	2.1	8	6	11.3	10
25	M5X0.8	Double Side: Φ8.2 Cog:M6x1.0 Through Hole:Φ4.6	15	5.5	2	40	28	-	3.1	10	8	12	10
32	G1/8	Double Side: Φ8.2 Cog:M6x1.0 Through Hole:Φ4.6	16	5.5	6	44	34	-	2.15	12	10	18.3	15
40	G1/8	Double Side: Φ10 Cog:M8x1.25 Through Hole:Φ6.5	20	7.5	6.5	52	40	-	2.25	16	14	21.3	16
